Product Introduction

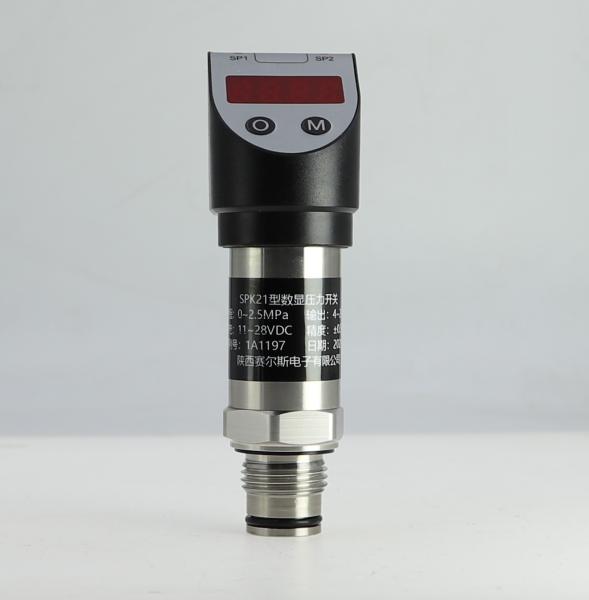

SPK21 12v 24v Negative Low Air Conditioner Pressure Sensitive
Controller Switch adopts all-stainless steel structure. The
pressure sensing components are automatically tested by computer.
The laser calibration process compensates the zero point and
temperature performance over a wide temperature range, which
enhances the long-term stability of the transmitter in industrial
environments. It adopts laser welding technology, safe and
leak-free.
Product Features
♦ Advanced temperature digital compensation, wide operating
temperature range
♦ Stainless steel structure, and good medium compatibility
♦ High-precision, high-frequency response, and long-term stability
Applicable Scope
♦ Industrial process testing and control
♦ Automatic testing system
♦ Industrial machinery manufacturing
♦ Hydraulic and pneumatic control system
♦ Pumping station and water treatment system
Standard Range
Pressure Type: gauge pressure, absolute pressure
Pressure Range: -100kpa to 0 kpa to 20kpa 40 kpa 60Mpa
Technical Index
Signal Output: 4~20 mA 0.5~4.5V 0~5V 0~10V
Signal Line Specification: 2 Wire 3 Wire 3 Wire 3 Wire
Supply Voltage: 9~30VDC 5VDC 9~30VDC 15~30VDC
Accuracy: ±0.5 %FS ±1 %FS
Zero temperature drift: ±0.02 %FS/℃
Sensitivity temperature drift: ±0.02 %FS/℃
Longterm Stability (1 Year) :±0.1 %FS
Frequency Response (-3dB) : 3.2kHz
Compensated Temperature: -20~+85°C
Working Temperature: -40~+125℃
Storage Temperature: -40~+125°C
Overload temperature: 200%FS
Burst Pressure: 300%FS
Mechanical Vibration: ±20g
Impact (11ms): 100g
Environmental Protection: IP65
Wetted parts: 17-4PH
Electrical connection: Direct lead or Hirschmann(DIN43650),
Watertight Connector(IP68)
Pressure connection: M20*1.5 G1/4 npt1/4
FAQ
Q: Do you accept small orders ?
A: Yes. If you are a small retailer or corporation, we would
absolutely like to grow with you. We look forward to working with
you for the long term.
Q: How about the price? Can you make it cheaper ?
A: We will give priority to the interests of our customers. Under
the most competitive conditions, we guarantee that our prices are
negotiable.
Q: Do you accept Customization ?
A:Yes,we can do OEM and ODM for our customers.
Q: How Can I place an order ?
A:You can place your order directly through Alibaba. You can also
send an inquiry to our foreign trade salesman to get detailed
information about your order, and we will provide an explanation of
the detailed process.
