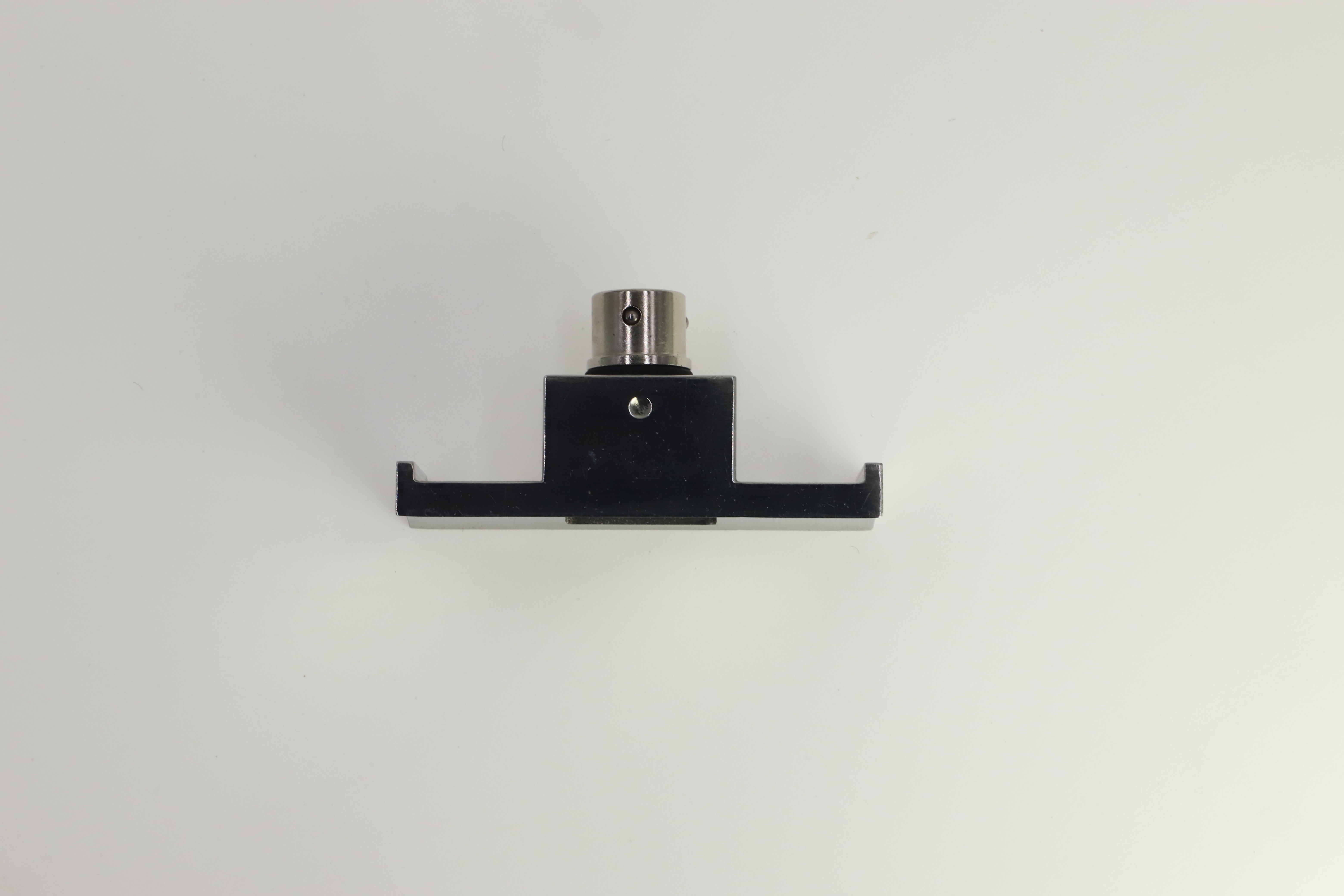

Name: Short Recovery Time 3mA 36VDC Industrial Vibration Sensor
Brand: Sier
Price: 249 USD

Add to Cart

This is our new product, welcome to contact us!!

Measuring range	±50G
Deviation calibration	<5mg
48h deviation stability	<2mg(Typical value)
Measuring axis	X,Y,Z
Annual deviation stability	7.5Mg Typical value(<25)
Power on/off repeatability	<10mg(MAX)
Deviation temp. coefficient	0.5mg/℃ Typical value ±2mg/℃ MAX
Annual scale factor stability	300(<1000)ppm Typical value
Resolution/threshold(@1Hz)	<5mg(MAX)
Nonlinear	<0.5%FS(MAX) <0.09g(MAX)
Bandwidth(4)	1~≥400Hz
Resonance frequency	6.7kHz
Output resistance/load	Min 10KΩ,as Vout(Pin 32)&VAGND(Pin 38)max 50pF, as Vout(Pin 32);& max 100F ,as VAGND(Pin 38)
Shock(g)	20g rms,20~2000Hz (Random noise, o, p, I each shaft effect 30min)
Operating current consumption	<3mA@12V DC
Scale factor temp. coefficient	100ppm/℃(Typical value) -50/250(Min/Max value)
Impact resistant	100g@11ms,Times/Axis(half sinusoid)
Recovery time	<1ms(1000g,1/2 sin 1ms,impact in/shaft)
Output current consumption	4~20mA@12V DC input voltage (%FS)
Operating temperature	-40℃~+85℃
Output rate	5Hz, 15Hz, 35Hz, 50Hz, 100Hz can be set
Output signal	TTL
Output voltage range	0~5V DC@12V DC
Input(VDD-CSS)	9-36V DC
Theory	Inductance Sensor
