    Cost Effective OEM 4-20mA Output Signal Compact Type Air Pressure Transmitter

    Ask Lasest Price
    Brand Name : Sier
    Model Number : SPT21C1
    Certification : CE,RoHS
    Price : USD15~25/Piece
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 pieces each month
    Delivery Time : 7
    • Product Details
    • Company Profile

    Cost Effective OEM 4-20mA Output Signal Compact Type Air Pressure Transmitter

    SPT21C1 Pressure Transmitter

    Features

    Reliable performance, easy application
    Short protection and reverse polarity protection
    Low cost
    Compact size


    Introduction

    SPT21C1 is economical pressure transmitter, uses standard ceramic pressure sensor and special circuit board to make it cost effective and good performance. This product is used for measure and control of liquid or gas pressure.


    Specification

    Pressure range0~0.5…40MPa (0~5…400bar)
    Over pressure2 times FS
    Pressure typeGauge
    Process connectionG1/4 male thread (or as per customer’s requirement)
    Accuracy±0.5%FS
    Long term stabilitymax. ±0.3%FS/year
    Offset thermal drift±0.02%FS/℃
    Application temp.-30~80℃
    Storage temp.-40~125℃
    Power supply12~28VDC
    Output signal4~20mADC(2 wires) 0/1~5VDC(3 wires)
    Load resistance≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
    Housing protectionIP65
    Electrical connectionDIN43650 plug,M12 (or as per customer’s requirement)

    Construction and Outline Dimension

    Construction material:

    HousingSS
    Pressure portSS
    SensorCeramic
    Sealing gasketViton
    Plug housingPlastic
    CablePolyethylene

    Outline dimension:

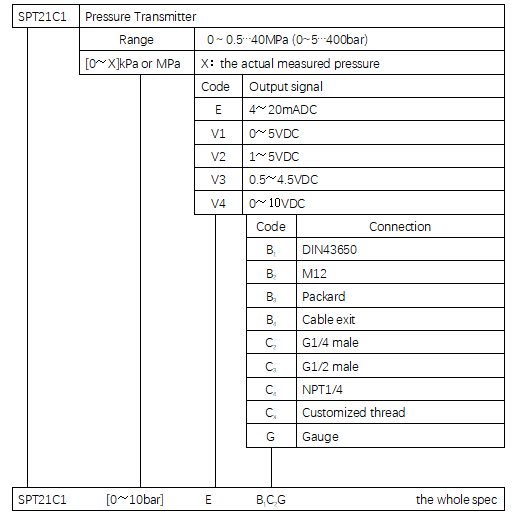

    Order Information

    Note:

    • Please pay attention that the media should be compatible with the contacted parts;
    • If any special requirements on function or specification, please contact with us freely;
