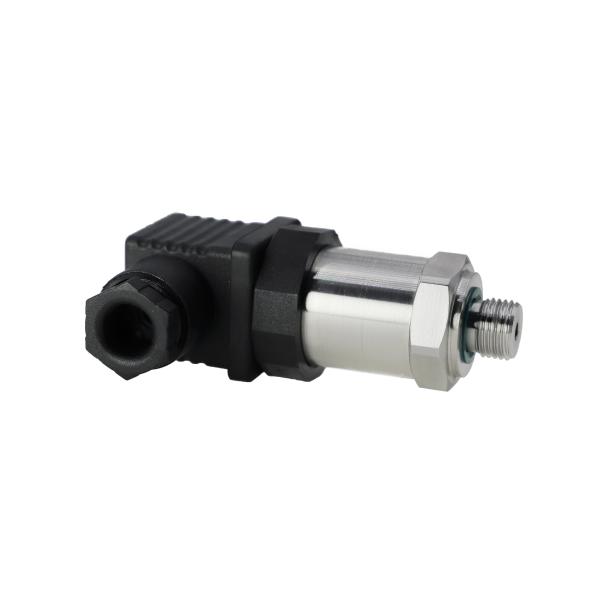

    Ceramic 4~20mA Pressure Transmitter 100MPa Factory OEM For Measure Air Gas

    Ask Lasest Price
    Brand Name : Sier
    Model Number : SPT21C
    Certification : CE,RoHS
    Price : USD20~35/Piece
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 pieces each month
    Delivery Time : 7
    • Product Details
    • Company Profile

    Ceramic 4~20mA Pressure Transmitter 100MPa Factory OEM For Measure Air Gas

    SPT21C Pressure Transmitter

    Features

    • Reliable performance, easy application
    • Short protection and reverse polarity protection
    • Gauge, absolute and sealed gauge optional
    • Compact size

    Introduction

    SPT21C is piezo-resistive pressure transmitter, uses high stable and reliable pressure sensor and special circuit board to produce transmitter. This product is used for measure and control of petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.

    Specification

    Pressure range-0.1…0~0.01…100MPa (-1…0~0.1…1000bar)
    Over pressure1.5 times FS or 110MPa (min. value is valid)
    Pressure typeGauge/absolute/sealed gauge optional
    Process connectionG1/4 male thread (or as per customer’s requirement)
    Accuracy±0.5%FS
    Long term stabilitymax. ±0.3%FS/year
    Offset thermal drift0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
    Span thermal drift0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
    Compensated temp.0~50℃
    Application temp.-30~80℃
    Storage temp.-40~120℃
    Power supply12~28VDC
    Output signal4~20mADC(2 wires) 0/1~5VDC(3 wires)
    Load resistance≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
    Housing protectionIP65
    Electrical connectionDIN43650 plug/M12 connector

    Construction and Outline Dimension

    Construction material:

    HousingSS304
    Pressure portSS304
    DiaphragmSS316L
    Sealing gasketViton
    Plug housingPlastic

    Outline dimension:

    Electrical Connection

    Note:

    • Please pay attention that the media should be compatible with the contacted parts;
    • If any special requirements on function or specification, please contact with us freely;
