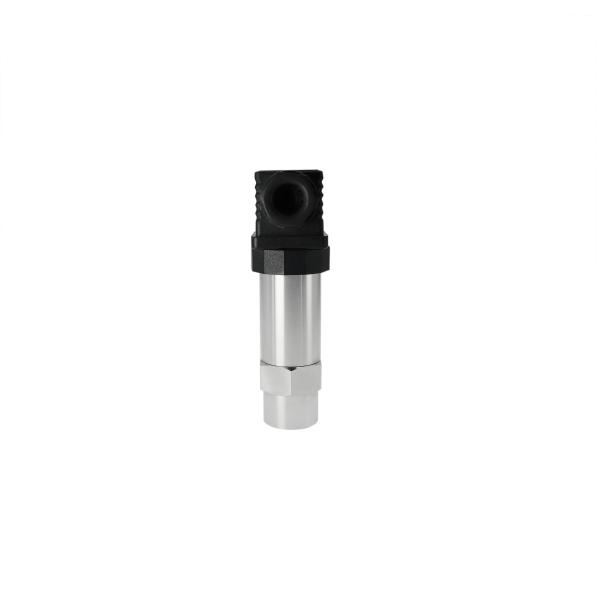

Name: Smart SS316L 28VDC High Accuracy Pressure Transmitter
Brand: Sier
Price: 25 USD

Add to Cart

SPT21 Pressure Transmitter

Features

➢ Easy application

➢ Short protection

➢ Gauge, absolute and sealed gauge optional

➢ Offset and full scale adjustable

Specification

Pressure range	-0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure	1.5 times FS or 110MPa (min. value is valid)
Pressure type	Gauge/absolute/sealed gauge optional
Process connection	G1/4 male thread (or as per customer’s requirement)
Accuracy	±0.25％FS, ±0.5％FS optional
Long term stability	max. ±0.3%FS/year
Offset thermal drift	0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Span thermal drift	0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Compensated temp.	0~50℃
Application temp.	-30~80℃
Storage temp.	-40~120℃
Power supply	12~28VDC
Output signal	4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance	≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection	IP65
Electrical connection	DIN43650 plug/M12 connector

Construction and Outline Dimension

Construction material:

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock, it's according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T in advance.
