12.6mm Piezoresistive Pressure Sensor

Ask Lasest Price
Brand Name :	Sier
Model Number :	SPT83
Certification :	CE,RoHS
Price :	USD15~20/Piece
Payment Terms :	T/T, Western Union
Supply Ability :	5000 pieces each month
Delivery Time :	7

Add to Cart

Product Details
Company Profile

12.6mm Piezoresistive Pressure Sensor

Piezoresistive OEM Pressure Sensor

Features
·Pressure range: -0.1…0～100kPa…100MPa
·Gauge, absolute and sealed gauge
Constant current power supply

·Isolated construction, enable to test measure various media

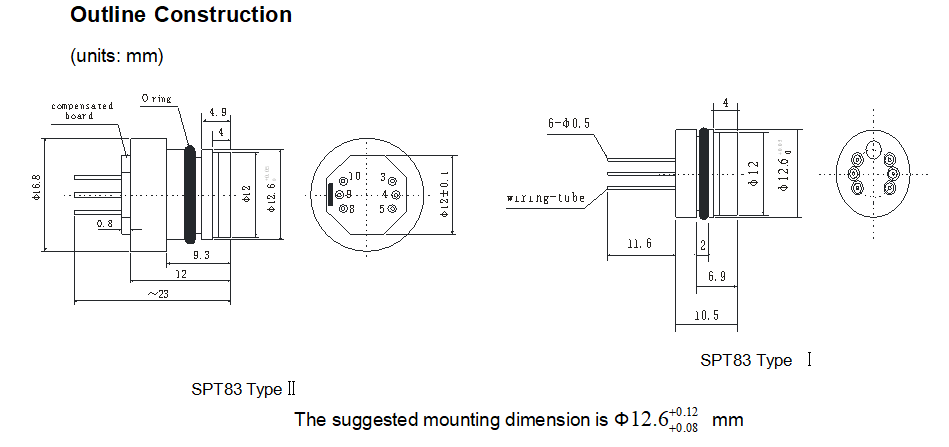

·Φ12.6mm compact size OEM pressure sensor
·Stainless steel 316L
·Wider temperature compensation range -10℃～+80℃

Application
·Industrial process control ·Level measurement ·Gas, liquid pressure measurement
·Pressure inspection meter ·Pressure calibrator ·Liquid pressure system and switch
·Cooling equipment and air conditioner ·Aviation and navigation inspection

Introduction
SPT83 piezoresistive pressure sensor is OEM pressure sensor with stainless steel isolated diaphragm, the whole product has integrated construction, high endurance, high stability and good reliability , it can be used specially for middle and high pressure measurement. The sensor using high accurate and stable pressure die, are produced on the advanced production line. Sensors are tested automatically, and compensated zero and temperature performance. With identical mounting dimension, the sensors are widely used for chemi-industry, process control, liquid pressure system and switch, etc.

Electric Performance

Power supply	≤2.0mADC
Electric connection	Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output	50% input (typ.)
Input impedance	2.5kΩ～5kΩ
Output impedance	2.5kΩ～5kΩ
Response (10%～90%)	<1ms
Insulation resistor	100MΩ, 100VDC
Overpressure	2 times FS

Construction Performance

Diaphragm	stainless steel 316L
Housing	stainless steel 316L
Pin	Kovar or silicon rubber flexible wires
O-ring	NBR
Net weight	~8g

Environment Condition

Position effect	deviate 90° from any orientation, zero change ≤±0.05%FS
Shock	no change at 10gRMS,(20～2000)Hz
Impact	100g,11ms
Media compatibility	the liquid or gas which is compatible with stainless steel and NBR

Basic Condition

Media temperature	(25±1)℃
Environment temperature	(25±1)℃
Humidity	(50%±10%)RH
Local air pressure	(86～106)kPa
Power supply	(1.5±0.0015)mADC

Basic Specification

Specification*	Min.	Typ.	Max.	Units
Linearity **		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2.0	mVDC
FS output	45	100		mVDC
Zero thermal error		±0.75	±1.0	%FS, @25℃
Span thermal error		±0.75	±1.0	%FS, @25℃
Compensated temp. range	0～70			℃
Working temp. range	-40～125			℃
Storage temp. range	-55～125			℃
Stability		±0.1	±0.2	%FS/year

Order Guide

Order Note
1. Please pay attention to protect the diaphragm to prevent sensor from damaging;
2. Please do not pull or drag the Kovar pin or flexible leading wires.
