Brand Name : | Sier |
Certification : | CE,RoHS |
Payment Terms : | T/T, Western Union |
Supply Ability : | 5000 pieces each month |
Delivery Time : | 7days |
Specification
Pressure Type | Gauge pressure/ absolute pressure /sealing pressure |
Power Supply | 24VDC(9~36V) |
Signal Output | 4~20mA;1~5V;0~10V;0~5V;RS485 |
Range | -0.1…0/0.01…60Mpa |
Accuracy | 0.3%,0.5% |
Long Term Stability | ±1%FS/year |
Ingress Protection | IP65 |
Pressure Connection | G1/4, G1/2,1/2NPT,1/4NPT, M20*1.5etc.(optional) |
Measure Medium | Gas, water, oil etc. (non-explosion-proof area) |
Time Response | ≤10ms(up to 90%FS) |
Housing material | 304/316L stainless steel |
Electrical Connection

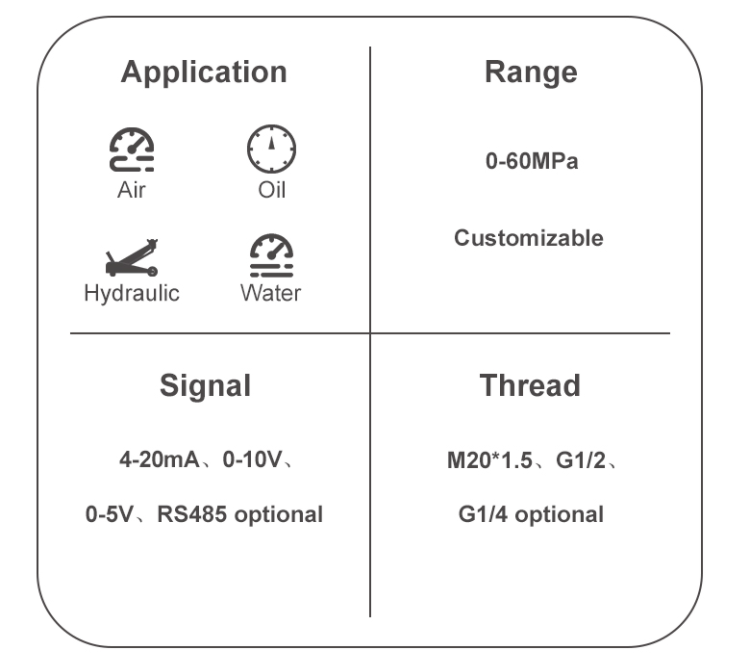

Application
Air tightness test
Micro pressure measurement
Evaporator level measurement
![]() |
